零泄漏 低噪音 高扬程 大流量
Zero leakage Low noise High lift Large flow
SX系列磁力泵采用磁力无接触传动，具有绝佳的密封性能，广泛应用于，模具温度控制系统，工业冷却系统，化工设备，供给水系统等行业和设备，可输送不含固体颗粒的清水、导热油燃油、冷媒等液体。
SX series magnetic pump adopts magnetic non-contact transmission and has excellent sealing performance. It is widely used in industries and equipment such as mold temperature control system, industrial cooling system, chemical equipment, water supply system, etc. It can transport clear water, heat transfer oil fuel, refrigerant and other liquids without solid particles.

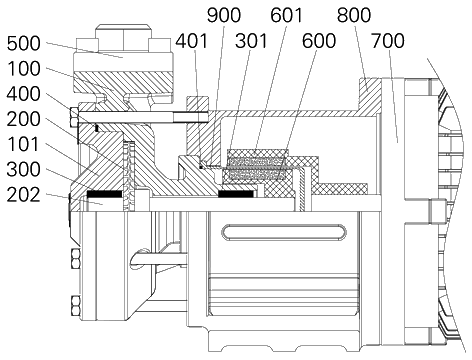

结构简图/Cross-sectional drawing
零件名称材及质表/Component and material list
| 编号/No. | 零件/Component | 材质/Material |
| 100 | 泵体/Pump body | SUS304 |
| 101 | 泵盖/Pump cover | SUS304 |
| 200 | 叶轮/Impeller | SUS304 |
| 202 | 轴/Spindle | 合金/Hard alloy |
| 300 | 轴承/Sliding bearing | 碳化硅/SiC |
| 301 | 轴承/Sliding bearing | 碳化硅/SiC |
| 400 | 密封垫/Gaskets | 石墨/Flexible graphite |
| 401 | 密封垫/Gaskets | 石墨/Flexible graphite |
| 500 | 法兰/Flange | SUS304 |
| 600 | 外磁转子/Outer magnetic coupling | 钐钴永磁/Sm2Co17 |
| 601 | 内磁转子/Innet magnetic coupling | 钐钴永磁/Sm2Co17 |
| 700 | 机座/Bracket | SUS304 铸铁/Cast iron |
| 800 | 电机/Motor | 材质/Material |
| 900 | 隔离套/Separating can | SUS304 |
性能参数/performance parameter
| 型号/Model | 最大流量 | 扬程/head m | 口径Diameter | 电机/Motor380V50Hz | 泵浦自重 | ||||
| Max flow | 最高 | 工作扬程 | 入口 | 出口 | 功率 | 匹数 | 转速 | weight | |
| (L/min) | Max head | Use head | Inlet | Outlet | Kw | Hp | Speed | Kg | |
| SX-60150 | 150 | 100 | ≤60 | DN32 | DN32 | 3.0 | 4 | 2800rpm | 46 |
| SX-60200 | 200 | 110 | ≤60 | 4.0 | 5 | 48 | |||

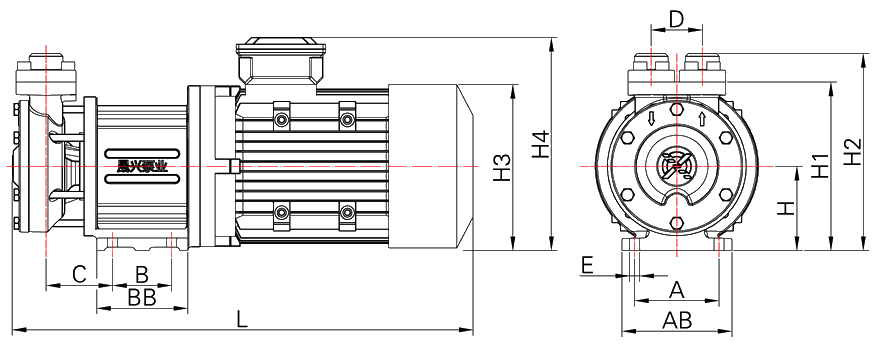

安装尺寸/Installation size
| 型号/Model | A | AB | B | BB | C | H | H1 | H2 | H3 | H4 | L | D | E |
| SX-60150 | 100 | 130 | 70 | 108 | 80 | 100 | 200 | 235 | 198 | 255 | 556 | 60 | 4-ø12 |
| SX-60200 |

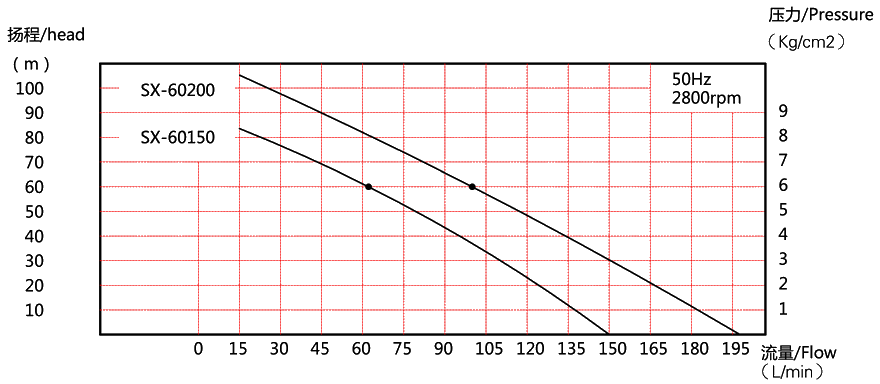

流量特性/Flow characteristics
上述性能曲线为对应于水温在20℃时以全速运行时所测得数据。
The above performance curve corresponds to the data measured when the water temperature is 20℃ and running at full speed.
为最高扬程工作点，水泵应于最高扬程工作点以下运行，超出最高扬程工作点运行时会有电机超负荷的风险。
As the working point with the highest lift, the pump should be operated below the working point with the highest lift, and there
will be the risk of motor overload when running beyond the working point with the highest lift.
will be the risk of motor overload when running beyond the working point with the highest lift.
